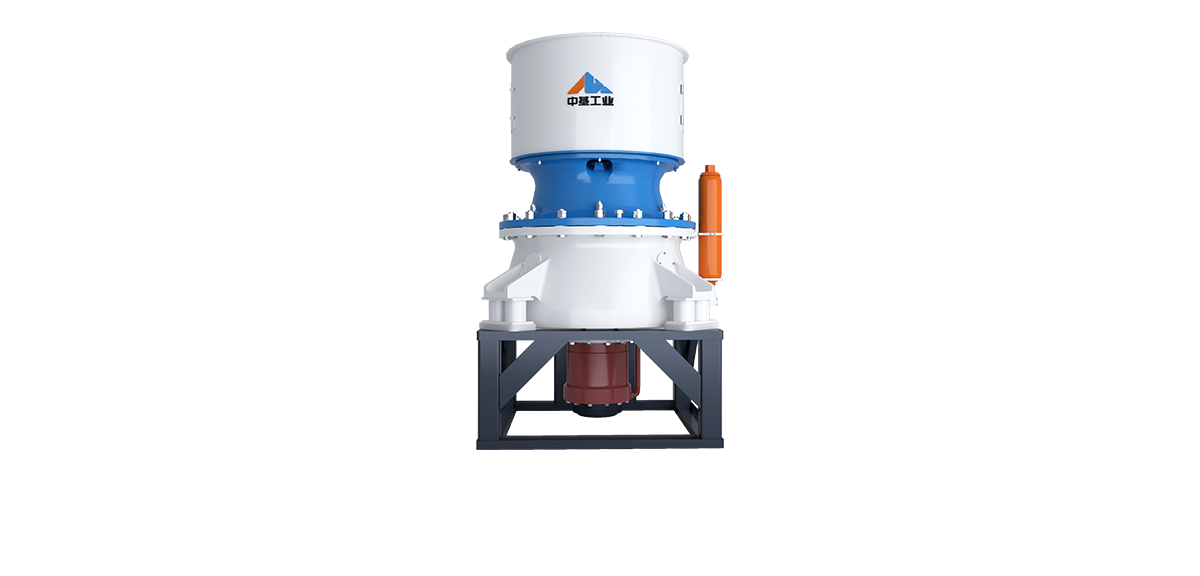

DG series single-cylinder hydraulic cone crusher has a combination of crushing machinery, hydraulic, electrical, automation and intelligent control technology.
| Model | Type of chamber | Max. Feeding size(mm) | Adjusting range of discharge opening(mm) | Power(kw) | Capacity (t/h) |
| DG100 | S1 oversize | ≤240 | ≥22 | ≤90 | 85-170 |
| S2 Middle coarse | ≤200 | ≥19 | 70-130 | ||
| H1 fine | ≤135 | ≥10 | 46-130 | ||
| H2 middle fine | ≤65 | ≥8 | 35-80 | ||
| H3 super fine | ≤38 | ≥4 | 27-60 | ||
| DG160 | S1 oversize | ≤360 | ≥25 | ≤160 | 120-345 |
| S2 Middle coarse | ≤300 | ≥22 | 105-305 | ||
| S3 coarse | ≤235 | ≥19 | 90-275 | ||
| H1 fine | ≤185 | ≥13 | 66-210 | ||
| H2 middle fine | ≤90 | ≥10 | 65-165 | ||
| H3 super fine | ≤50 | ≥6 | 48-105 | ||
| DG250 | S1 oversize | ≤450 | ≥35 | ≤250 | 255-605 |
| S2 Middle coarse | ≤400 | ≥29 | 215-515 | ||
| S3 coarse | ≤300 | ≥25 | 190-490 | ||
| H1 fine | ≤215 | ≥16 | 110-395 | ||
| H2 middle fine | ≤110 | ≥13 | 115-340 | ||
| H3 super fine | ≤70 | ≥8 | 90-255 | ||
| DG315 | S1 oversize | ≤560 | ≥41 | ≤315 | 335-1050 |
| S2 Middle coarse | ≤500 | ≥38 | 305-895 | ||
| H1 fine | ≤275 | ≥16 | 170-665 | ||
| H2 middle fine | ≤135 | ≥16 | 190-505 | ||
| H3 super fine | ≤65 | ≥13 | 205-320 | ||
| DG500 | S1 oversize | ≤480 | ≥60 | ≤355 | 500-950 |
| H1 fine | ≤250 | ≥20 | 350-650 | ||
| H2 middle fine | ≤170 | ≥16 | 280-500 | ||
| H3 super fine | ≤100 | ≥12 | 200-450 |
