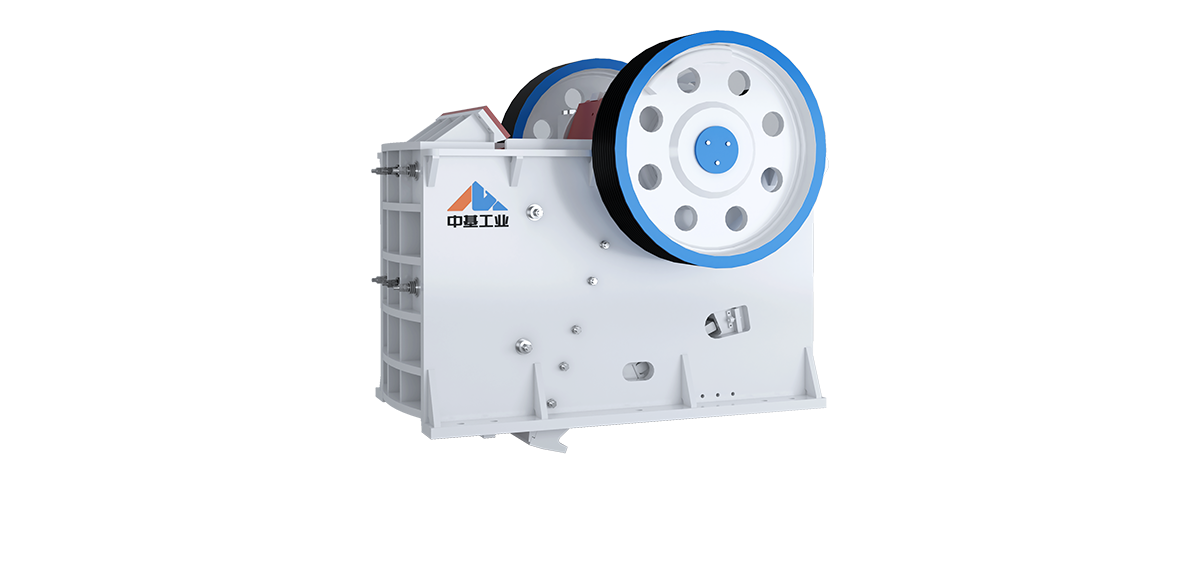

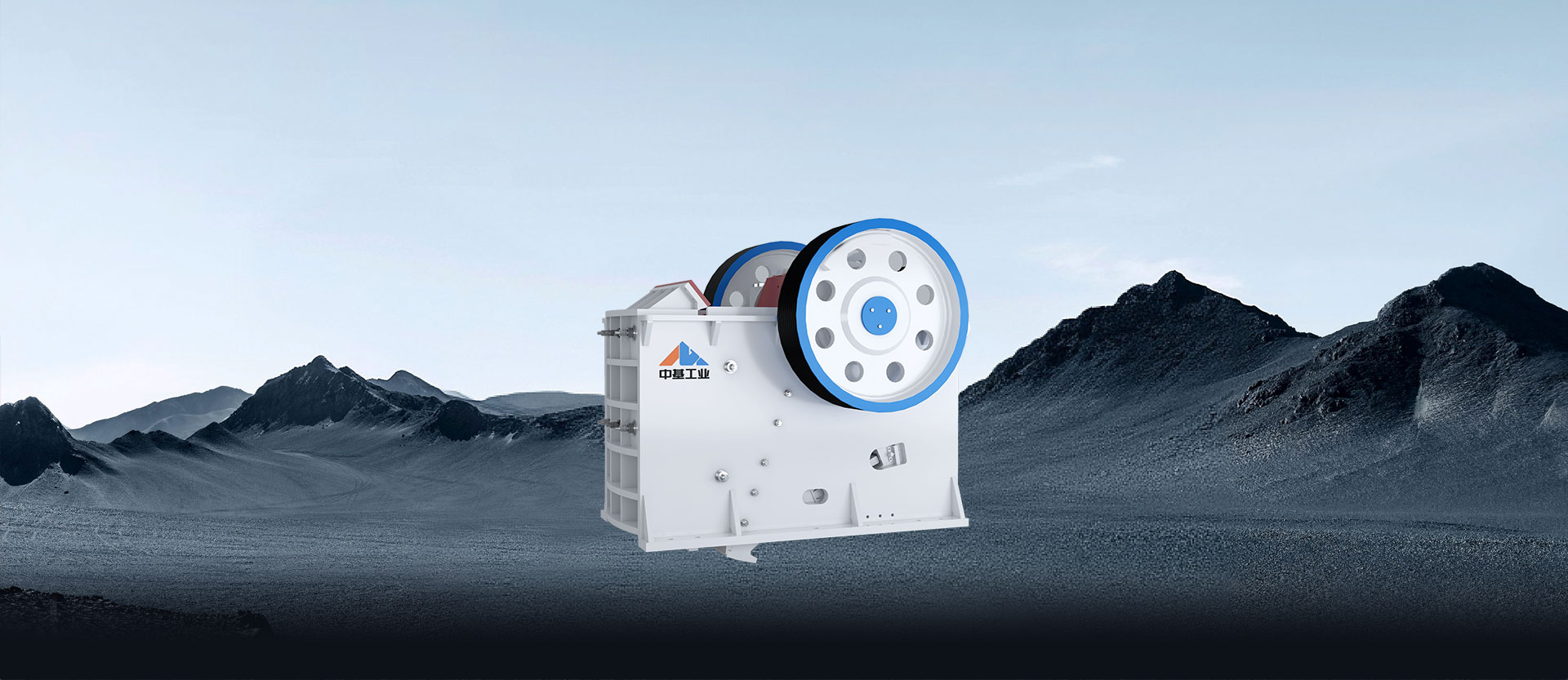

PE jaw crusher is the primary crushing equipment in mine field, with the longest in market application, cost-effective, the biggest sales in the world.
| Model | Feeding size(mm) | Max. Feeding size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Weight（T） | Overall Dimension(mm) |
| PE-400x600 | 400x600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700x1732x1653 |
| PE-500x750 | 500x750 | 425 | 50-100 | 40-110 | 45-55 | 12 | 1950x1878x1855 |
| PE-600x900 | 600x900 | 480 | 65-140 | 90-180 | 55-75 | 19 | 2200x2008x2302 |
| PE-750x1060 | 750x1060 | 630 | 80-160 | 110-320 | 90-110 | 29 | 2624x2302x3110 |
| PE-900x1200 | 900x1200 | 750 | 95-180 | 220-450 | 132 | 58 | 3550x2823x3196 |
| PE-1000x1200 | 1000x1200 | 850 | 95-190 | 230-500 | 132 | 69 | 3800x3166x3045 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 220 | 100.9 | 4930x3148x3703 |
| PE-1500x1800 | 1500x1800 | 1200 | 220-350 | 450-1000 | 355 | 132 | 5630x3210x4120 |
| Model | Feeding size(mm) | Max. Feeding size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Weight（T） | Overall dimension(mm) |
| PE-250x400 | 250x400 | 200 | 20-50 | 5-20 | 15 | 3 | 1430x1310x1340 |
| PEX-250x750 | 250x750 | 210 | 25-60 | 15-30 | 22-30 | 5 | 1667x1545x1020 |
| PEX-250x1000 | 250x1000 | 210 | 25-60 | 15-50 | 30-37 | 7 | 1695x1966x1438 |
| PEX-250x1200 | 1200x250 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 1695x2161x1450 |
| PEX300x1300 | 300x1300 | 250 | 20-90 | 30-90 | 55-75 | 11.5 | 1893x2300x1700 |
