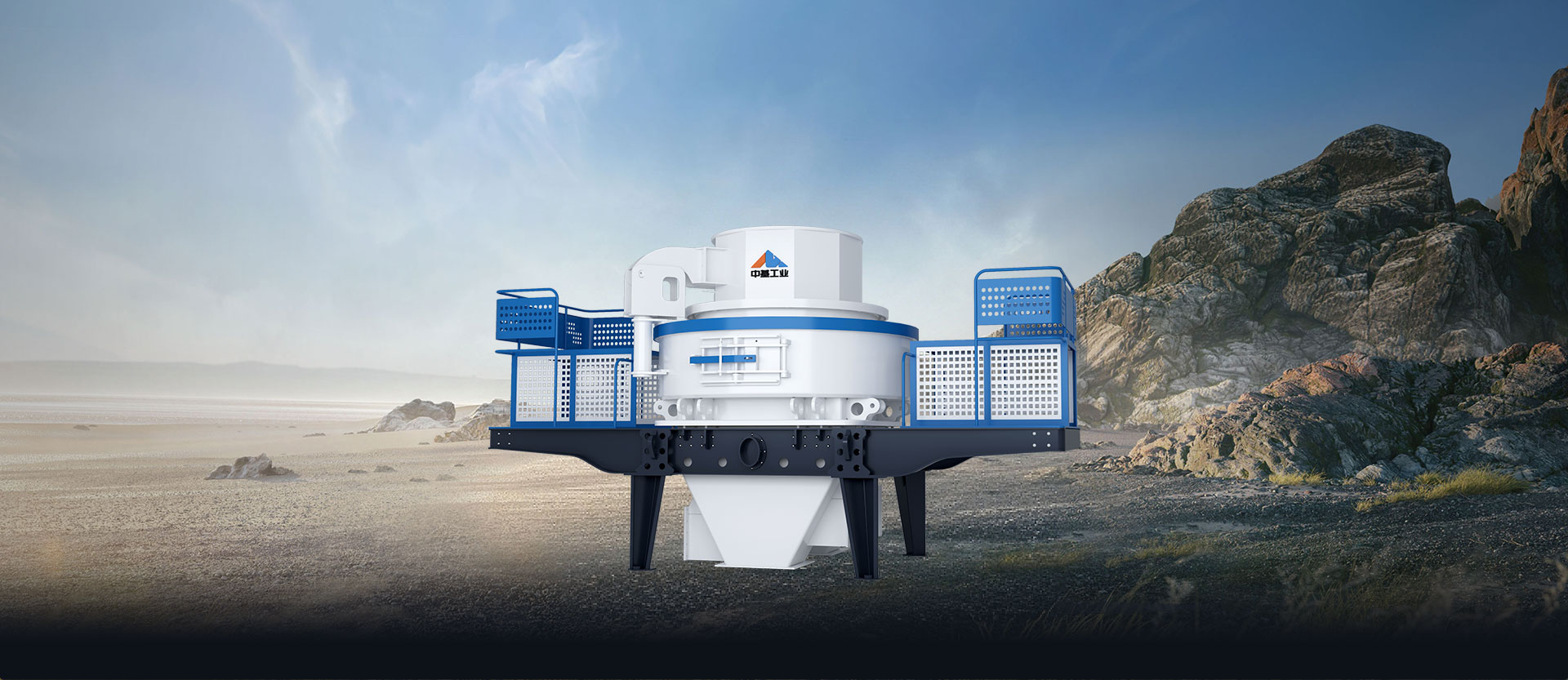

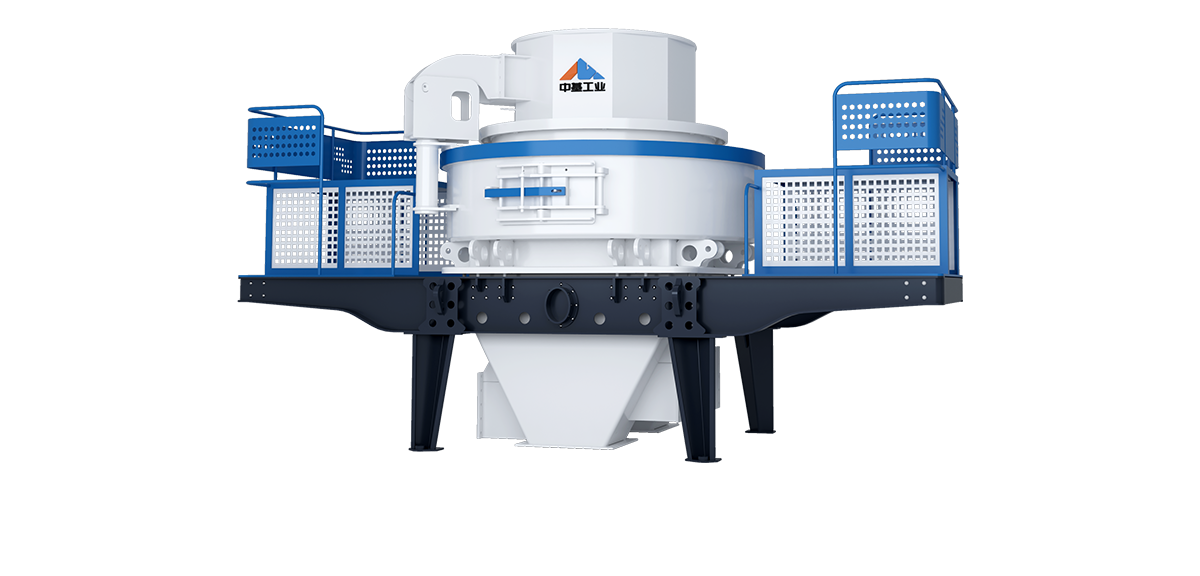

VSI series vertical shaft impact crusher (sand making machine) is our company combined with advanced technology domestic and abroad, many years technology accumulation and modern processing equipment to ensure the leading position.
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | VSI-1145 | ||
| Capacity (t/h) | Central feeding with circular cascade feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 | |
| Fully central feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | ||
| Feeding size (mm) | Soft material | <30 | <35 | <40 | <45 | <50 | |
| Hard material | <25 | <30 | <35 | <40 | <45 | ||
| Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 | ||
| Double motor power(kw) | 110-150 | 180-220 | 264-320 | 400-440 | 400-440 | ||
| Voltage | 380V 50Hz | ||||||
| Thin oil lubrication station | Motor power(kw) | 2×0.25 | |||||
| Safe Assurance | Double oil pumps assure enough oil supply; Switch off automatically without oil flow or oil pressure. Lower the temperature with cool water in summer raise the temperature with motor in winter. | ||||||
| Dimension (mm) | 820×520×1270 | ||||||
| Power of oil Tank Heater(kw) | 2 | ||||||
