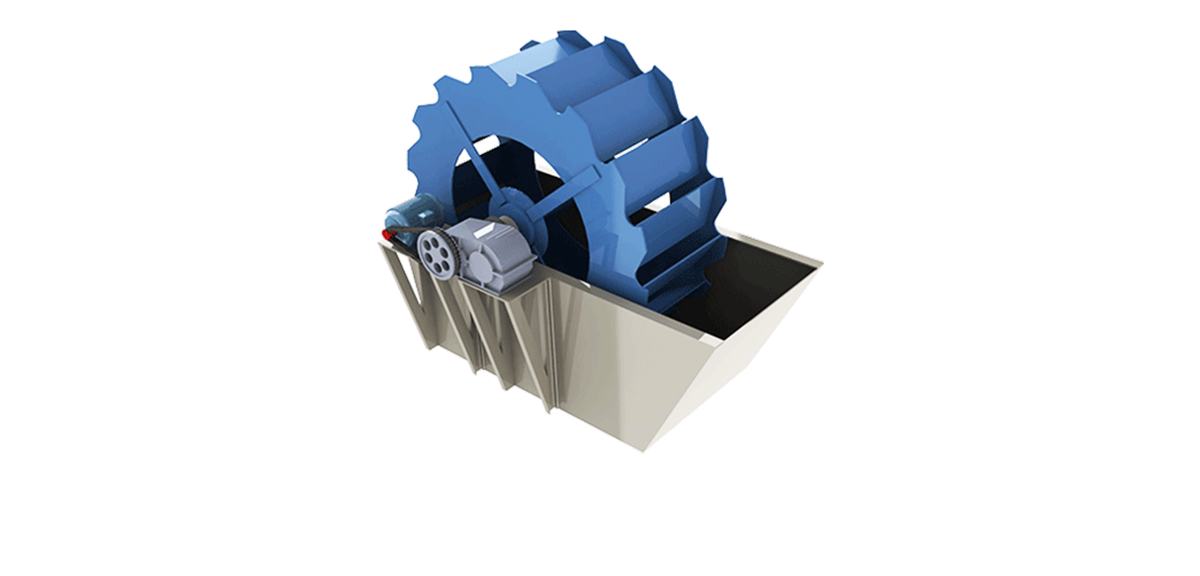

XSD sand washing machine is a kind of high efficiency sand washing equipment,which is used with sand making machine. It can wash stone powder and impurity in the sand made by sand making machine away.
| Model | XSD-2610 | XSD-2816 | XSD-3016 | XSD-3620 |
| Wheel size(mm) | 2600×1000 | 2800×1600 | 3000×1600 | 3600×2000 |
| Wheel speed(r/min) | 1.178 | 1.177 | 1.179 | 1.15 |
| Capacity(t/h) | 20-50 | 30-60 | 50-120 | 80-160 |
| Max.feeding size(mm) | ≤10 | ≤10 | ≤10 | ≤10 |
| Power(kw) | 7.5 | 7.5-11 | 11-15 | 20-30 |
| Model of gear box | ZQ400-50-I-Z | ZQ650-50-I-Z | ZQ650-50-I-Z | ZQ650-50-I-Z |
| Dimension(mm) | 3600×2116×2690 | 3964×3015×2980 | 3964×3015×3080 | 4624×3443×3680 |
