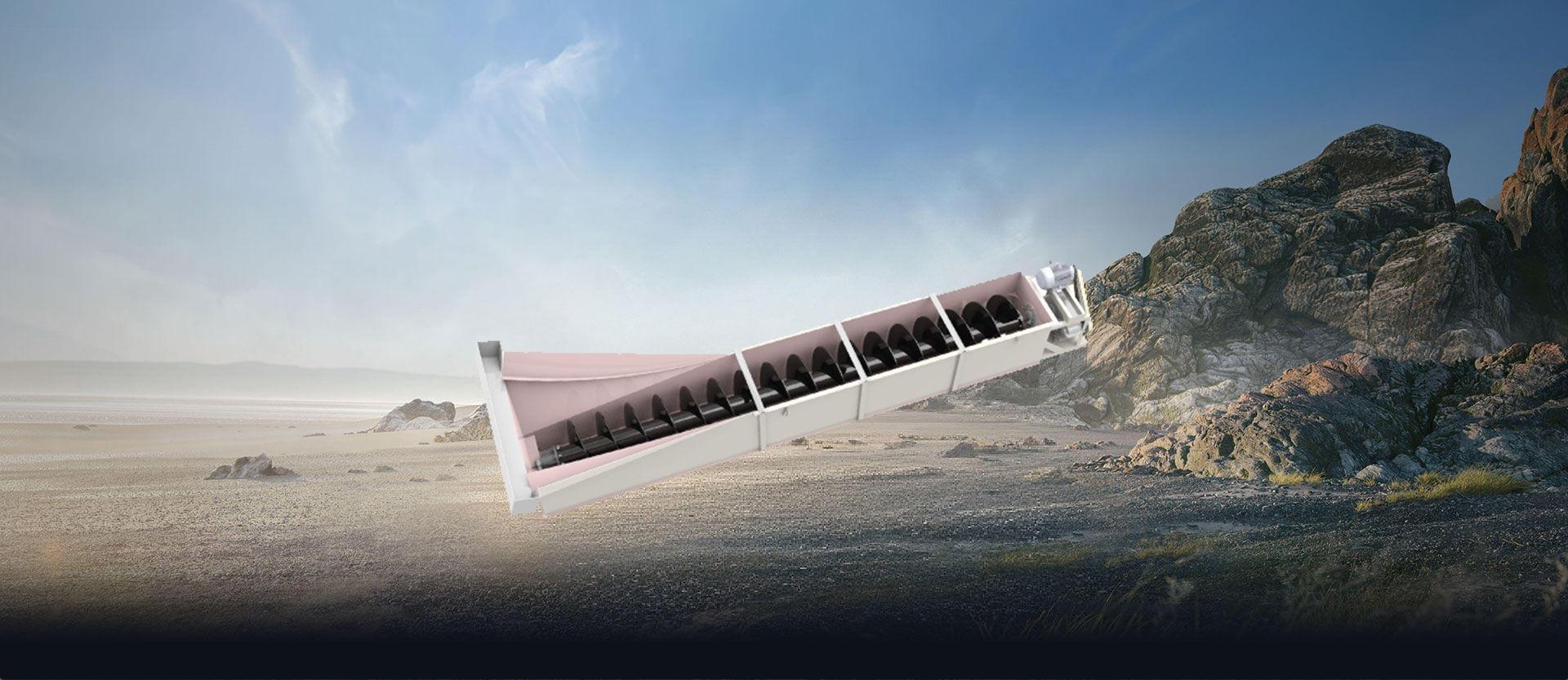

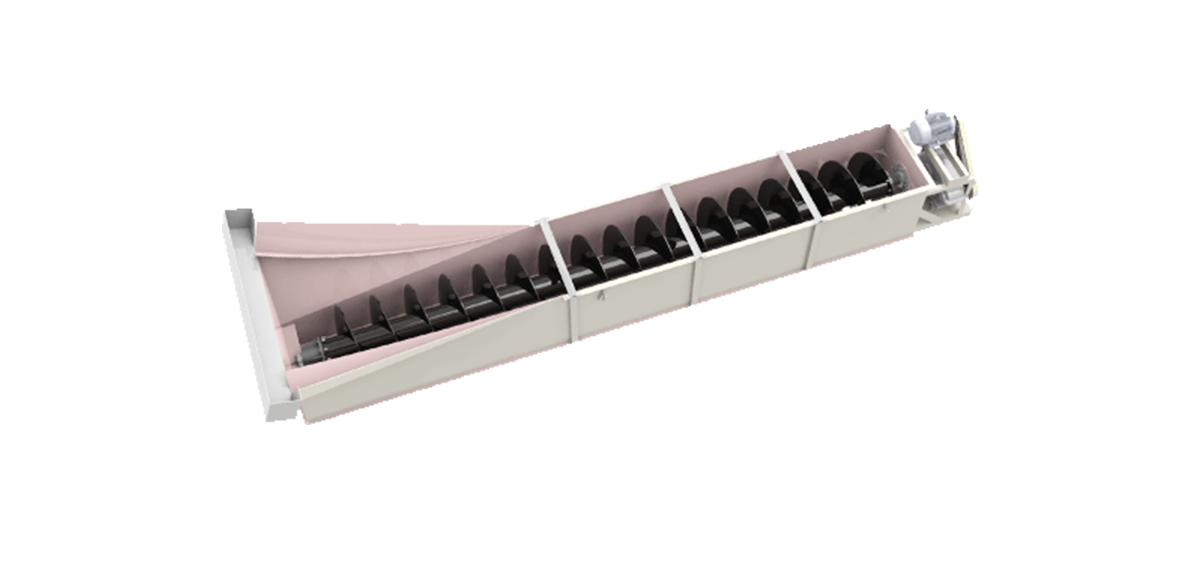

LSX series spiral sand washing machine can clean and separate powder and soil in sand and stone, its novel sealing structure, reliable transmission device, ensure the effect of cleaning and dehydration, and is a kind of high efficiency sand washing equipment used with sand making machine.
| Model | Number of Spirals | Spiral Diameter(mm) | Sink Length(mm) | Selected Granularity(mm) | Processing Capacity(t/h) | Spiral Speed(rpm) | Motor Power(kw) | Water Consumption (t/h) | Weight (t) | Dimensions(mm) |
| LSX-920 | 1 | 920 | 7585 | ≤10 | 100 | 21 | 11 | 10-80 | 6.2 | 8420×2180×3960 |
| 2LSX-920 | 2 | 920 | 7585 | ≤10 | 200 | 21 | 11×2 | 20-160 | 11.5 | 8420×3970×3960 |
| LSX-1120 | 1 | 1120 | 9750 | ≤10 | 175 | 17 | 18.5 | 20-150 | 10.9 | 10770×3950×4860 |
| 2LSX-1120 | 2 | 1120 | 9750 | ≤10 | 350 | 17 | 18.5×2 | 40-300 | 17.8 | 10770×5260×4860 |
