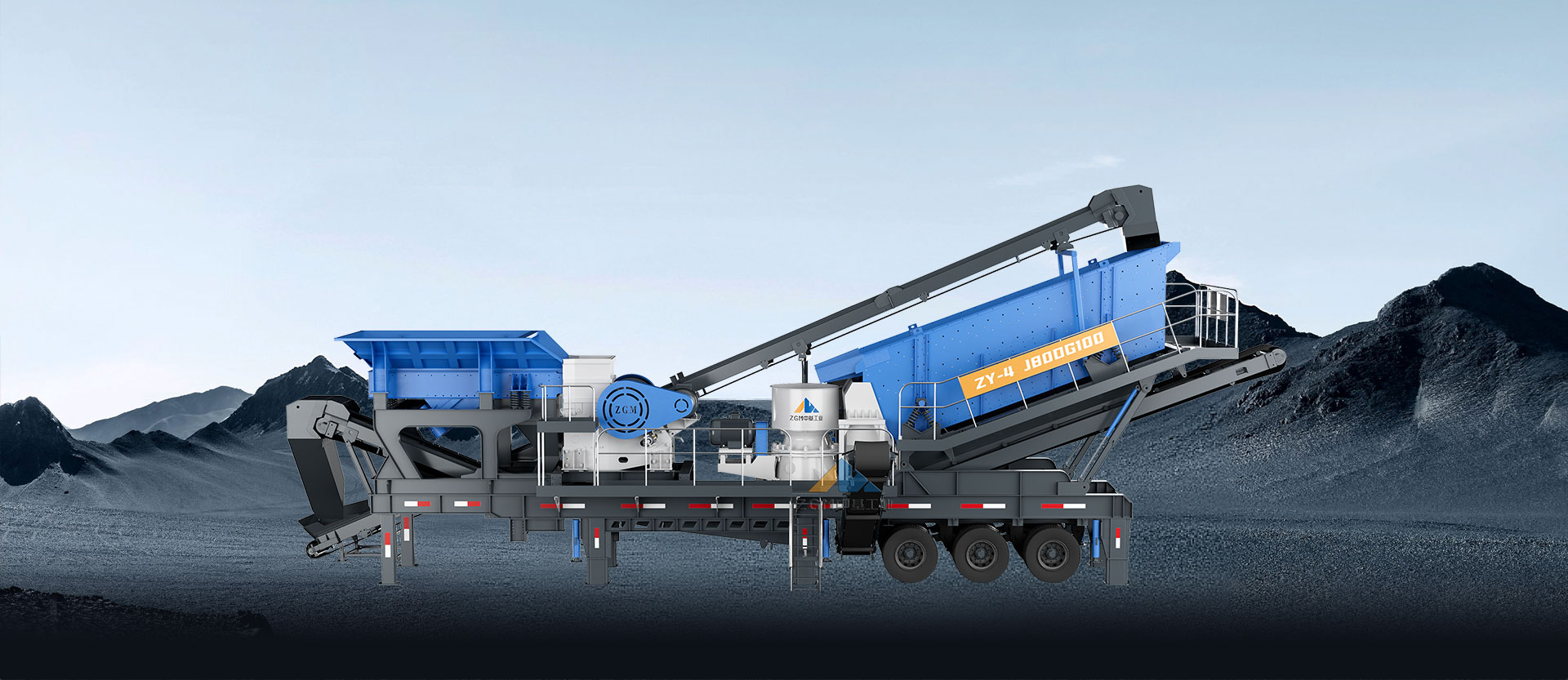

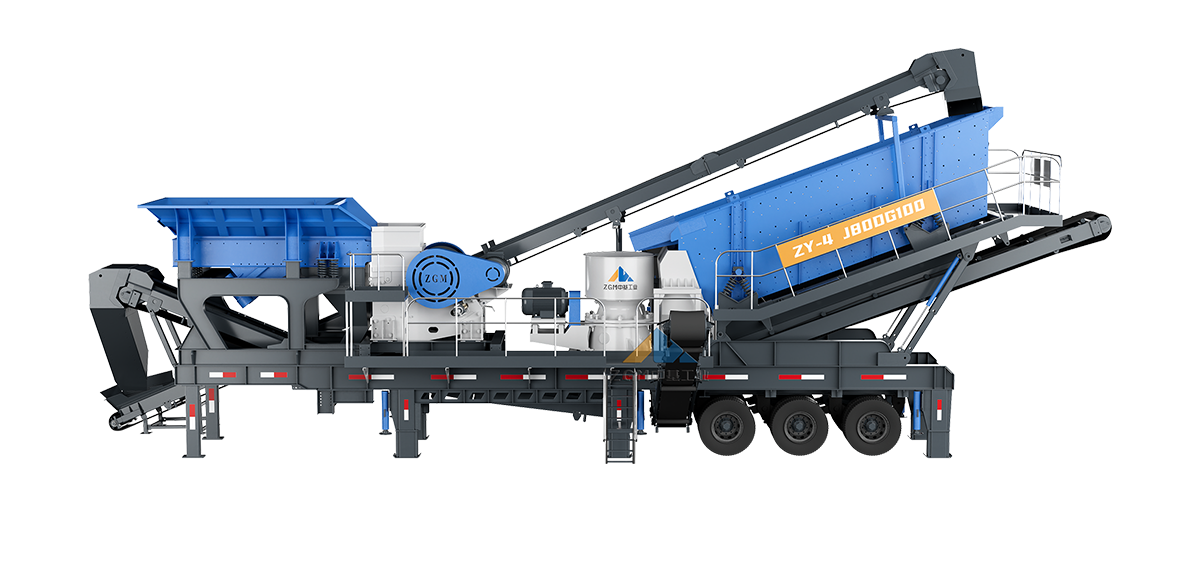

ZY-4 series mobile station is one integrated design on customer's request, in traditional production line use 2-3 vehicles for production, ZY-4 combines them together.
| Model | Feeder Model | Primary Crusher | Second Crusher | Sreen Model | Iron Remover | Belt Conveyors | Frame | Capacity（t/h） | Hydraulic system |
| ZY-4 E57C75 | GZD3090 | PE500x750 | CS75 | 3YS1548 | RCYD(C)-6.5 | 5 | Triaxial | 60-90 | Hydraulic lift |
| ZY-4 K80DG100 | GZD3896 | J6S80 | DG100 | 3YS1560 | RCYD(C)-6.5 | 5 | Triaxial | 80-120 | Hydraulic lift |
| ZY-4 E90DG100 | GZD3896 | PE600x900 | DG100 | 3YS1560 | RCYD(C)-6.5 | 5 | Triaxial | 100-120 | Hydraulic lift |
| ZY-4 E90DG160 | GZD3896 | PE600x900 | DG160 | 3YS1560 | RCYD(C)-6.5 | 5 | Triaxial | 150-180 | Hydraulic lift |
