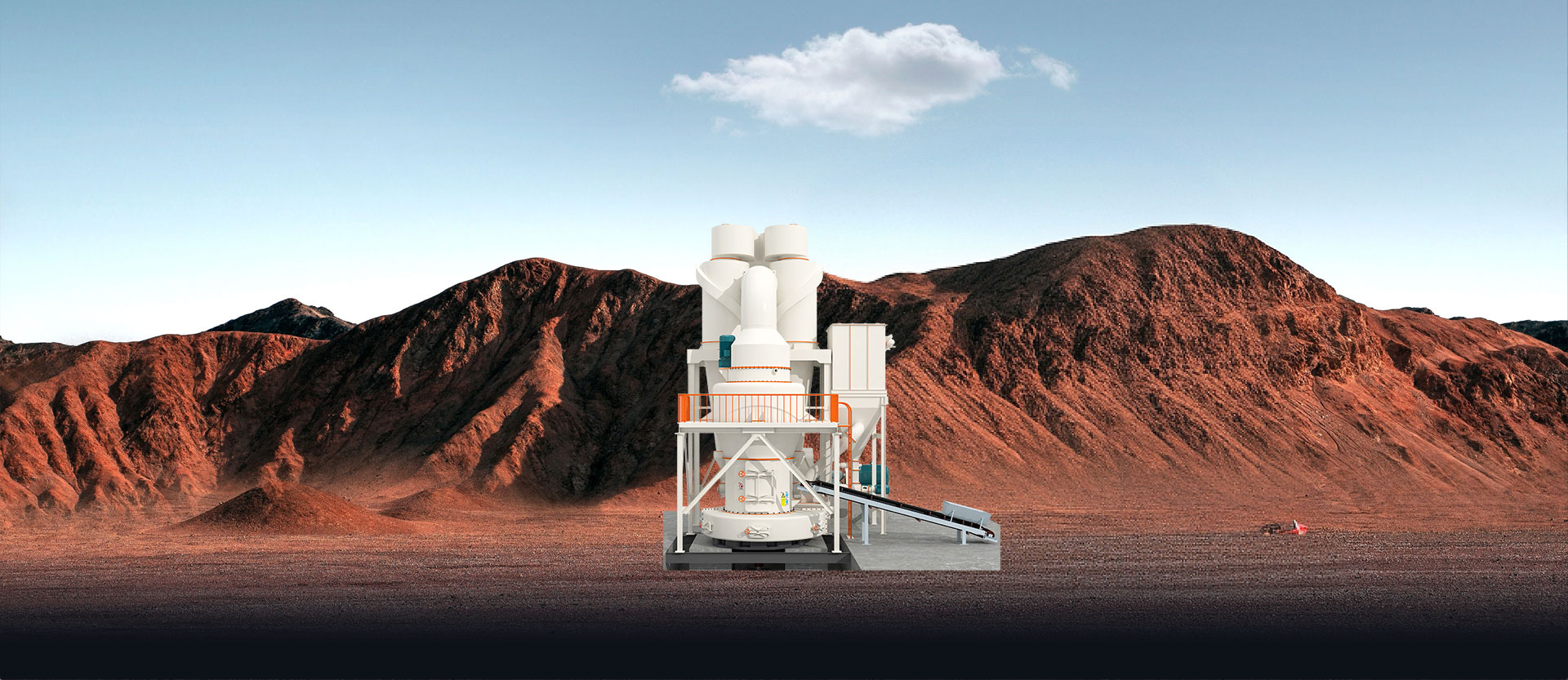

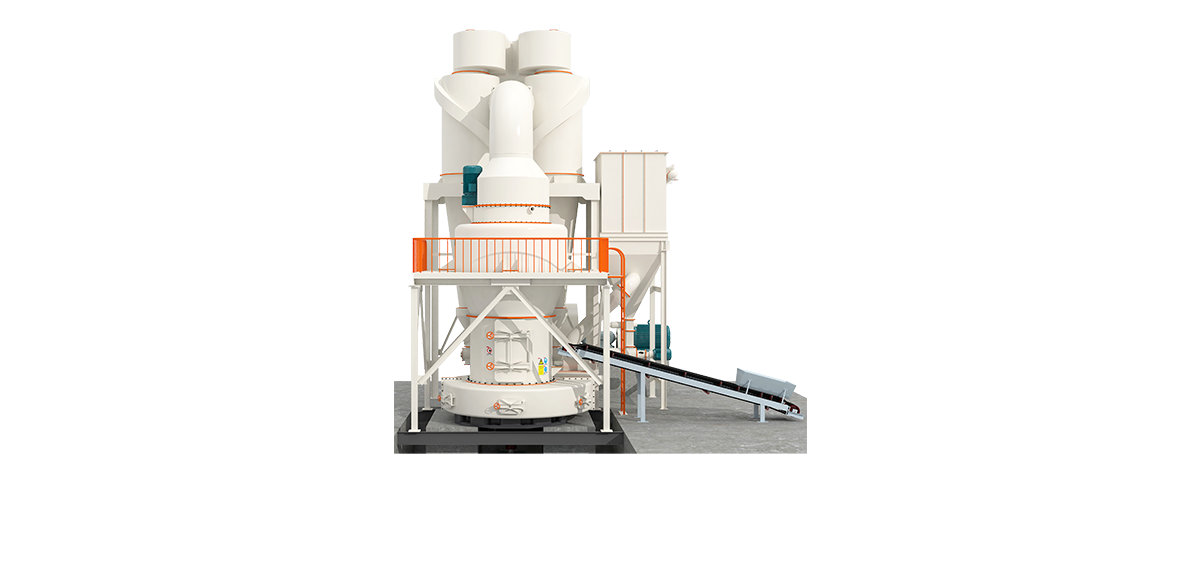

YGM-Q series European type of strength grinding mill (upgraded Raymond mill) is a high capacity, energy-saving, environmentally friendly, and strong type high-end powder grinding equipment.
Main Specification of European Strength Grinding Mill
| Model | Main machine | Classifier | Air Blower | ||||
| Speed of Main Mill (r/min) | Feeding Size (mm) | Final Size (mesh) | Capacity(t/h) | Main Power (kw) | Power (kw) | Power (kw) | |
| YGMQ950 | 142 | ＜30 | 18-425 | 0.5-6.5 | 30-37 | 5.5-11 | 30-37 |
| YGMQ1300 | 106 | ＜30 | 2-18 | 75-90 | 7.5-18.5 | 75-90 | |
| YGMQ1500 | 96 | ＜35 | 5-20 | 90 | 18.5-22 | 110 | |
| YGMQ1600 | 82 | ＜35 | 5.5-25 | 132 | 18.5-30 | 132 | |
| YGMQ1850 | 78 | ＜40 | 8-38 | 185 | 30 | 200 | |
Main Specification of European Strength Grinding Mill (Ultra)
| Model | Main machine | Classifier | Air Blower | ||||
| Speed of Main Mill (r/min) | Feeding Size (mm) | Final Size (mesh) | Capacity(t/h) | Main Power (kw) | Power (kw) | Power (kw) | |
| YGMQ1000 Ultra | 142 | ＜30 | 18-425 | 1-9 | 45 | 5.5-11 | 45 |
| YGMQ1150 Ultra | 120 | ＜30 | 1.5-15 | 55 | 7.5-11 | 55 | |
| YGMQ1300 Ultra | 106 | ＜30 | 2.5-18 | 90 | 11-22 | 90 | |
| YGMQ1500 Ultra | 96 | ＜35 | 5.5-23 | 110 | 18.5-22 | 110 | |
| YGMQ1700 Ultra | 82 | ＜40 | 6.8-35 | 160 | 30 | 160 | |
| YGMQ1850 Ultra | 78 | ＜45 | 10-40 | 200 | 37 | 220 | |
| YGMQ2000 Ultra | 72 | ＜50 | 12-45 | 220-250 | 45 | 250-280 | |
| YGMQ2180 Ultra | 68 | ＜50 | 14-50 | 280-315 | 55 | 315 | |
Note: ① the treatment capacity in the table is based on grinding limestone (SiO2 < 1%), and the screening rate of the product is 80%. ② This series of models can be configured according to different production
requirements, such as material, process, capacity and so on. Please contact the relevant person in charge of business for details.
