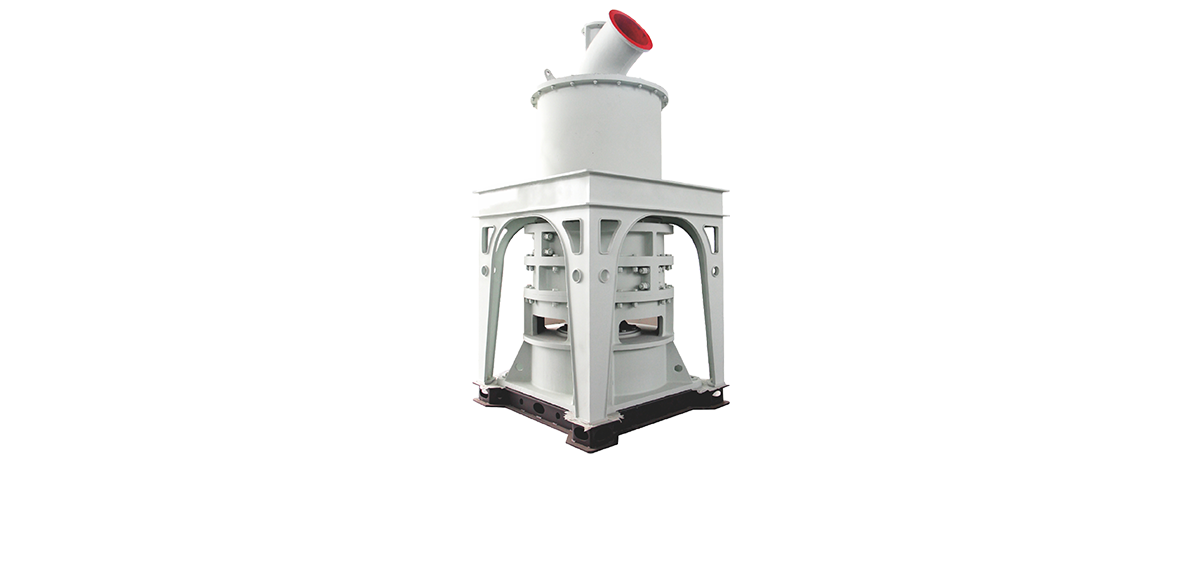

HGM Series Three-rings (Four-rings) Micro-Powder Grinder Mill is a new type of high efficient fine powder and ultrafine powder processing equipment.
| Model | HGM80 | HGM100 | HGM125 | HGM168 | |||
| No.of Roller and Ring | No.of Roller (Pcs) | 21 | 28 | 32-36 | 40-44 | ||
| No.ofRing (Pcs) | 3 | 4 | 4 | 4 | |||
| The Feeding Size(mm) | ≤20 | ||||||
| Capacity(Kg/h) | 500-5000 | 1000-8500 | 1500-12000 | 5000-25000 | |||
| The Final Size | Micron | 45-3 | |||||
| Mesh | 3250-325 | ||||||
| Motor Power (KW) | Main Mill | 55-75 | 132-150 | 185-220 | 315 | ||
| Classifier | 18.5 | 37 | 55 | 18.5x5 | |||
| Air Blower | 45 | 75 | 132 | 160 | |||
| Screw Conveyer | 2.2 | 2.2 | 3 | 4 | |||
| Discharge Valve | 2x0.75 | 1.1 | 1.5 | 2/1.5 | |||
| Air Compressor | 7.5 | 15 | 22 | 30 | |||
| Overall Dimension(Length*Width*Height)(M) | 13.9x4x6.2 | 18x4.6x8.6 | 14x9 x 10.25 | 26.3x7.5x11.9 | |||
