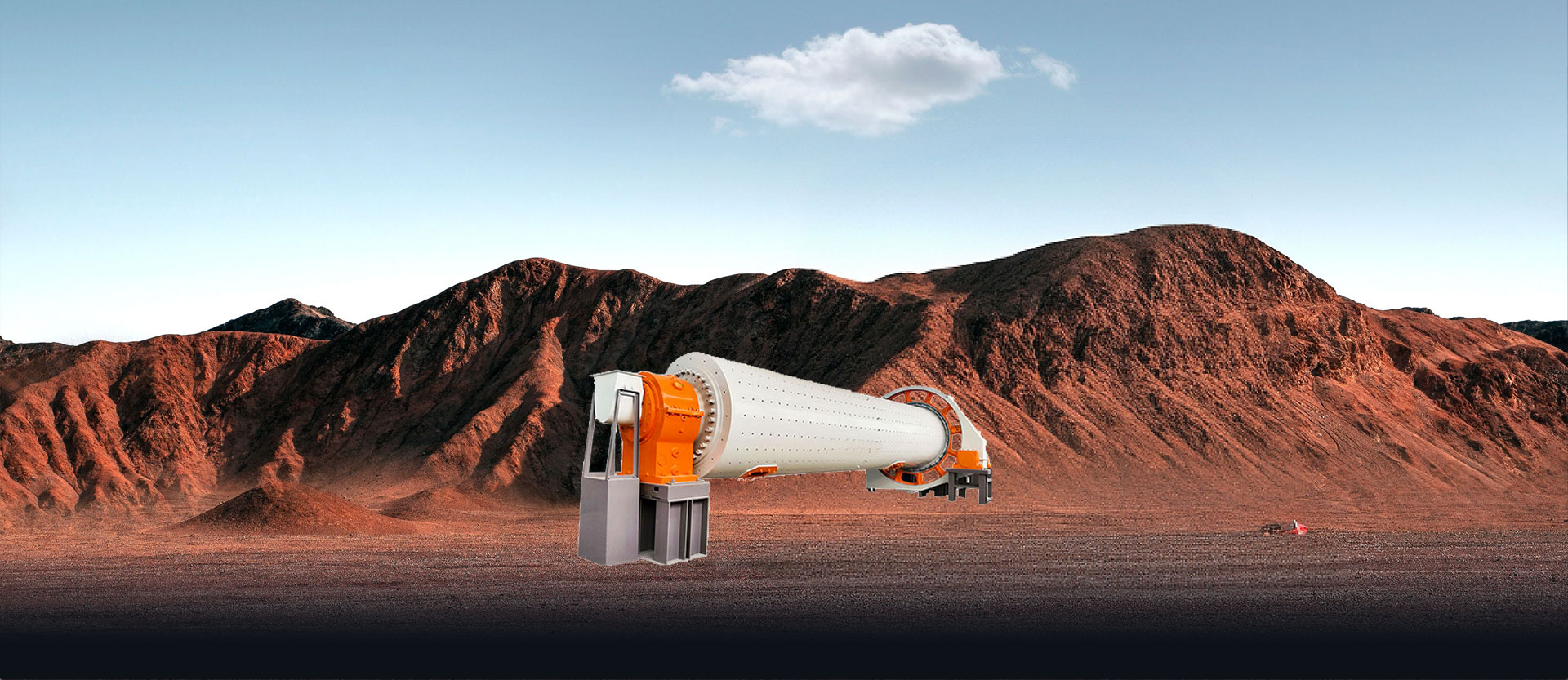

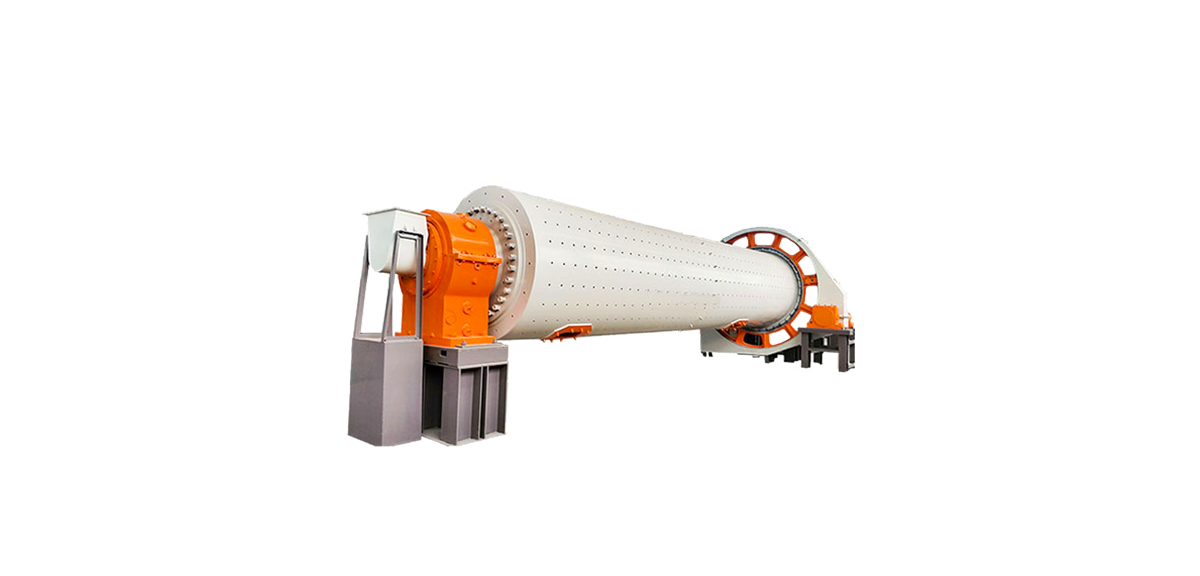

Ball mill is key equipment for the secondary grinding after the primary crushing. The material enters the first warehouse of the mill evenly from the hollow shaft by the feeding device.
| Model | Rotary Speed（r/min） | Ball Weight(t) | Feeding Size（mm） | Output Size(mm) | Capacity(t/h) | Power（kw） | Weight(t) |
| Φ900*3000 | 35.6 | 2.4 | ≤25 | 0.075-0.89 | 0.8-2.5 | 22 | 5.3 |
| Φ1200*3000 | 32.4 | 4.5 | ≤25 | 0.074-0.4 | 1.6-3 | 37 | 12.1 |
| Φ1200*4500 | 32.4 | 7 | ≤25 | 0.074-0.4 | 1.83-3.9 | 55 | 13.1 |
| Φ1500*3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2.8-4 | 75 | 14.8 |
| Φ1500*4500 | 29.7 | 11 | ≤25 | 0.074-0.4 | 4.8-7 | 110 | 19.9 |
| Φ1500*5700 | 29.7 | 14 | ≤25 | 0.074-0.4 | 5-8 | 130 | 23.4 |
| Φ1500*7000 | 29.7 | 17 | ≤25 | 0.074-0.4 | 6-8 | 155 | 27.5 |
| Φ1830*3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4.5-10.5 | 130 | 26.6 |
| Φ1830*4500 | 25.4 | 17 | ≤25 | 0.074-0.4 | 6.8-11.5 | 155 | 30.4 |
| Φ1830*6400 | 25.4 | 24 | ≤25 | 0.074-0.4 | 7-12 | 210 | 32.3 |
| Φ1830*7000 | 25.4 | 26 | ≤25 | 0.074-0.4 | 7.8-13.8 | 245 | 34.2 |
| Φ2100*3000 | 24.9 | 15 | ≤25 | 0.074-0.4 | 5.8-14 | 210 | 32.3 |
| Φ2100*4500 | 24.9 | 23 | ≤25 | 0.074-0.4 | 9.5-18 | 245 | 40 |
| Φ2400*3000 | 20.8 | 20 | ≤25 | 0.074-0.4 | 7.8-18 | 245 | 51.3 |
| Φ2400*4500 | 20.8 | 30 | ≤25 | 0.074-0.4 | 13.7-28 | 380 | 63.7 |
| Φ2700*4000 | 19.5 | 34 | ≤25 | 0.074-0.4 | 15-28 | 475 | 89 |
| Φ2700*4500 | 19.5 | 39 | ≤25 | 0.074-0.4 | 16.5-36 | 475 | 97 |
