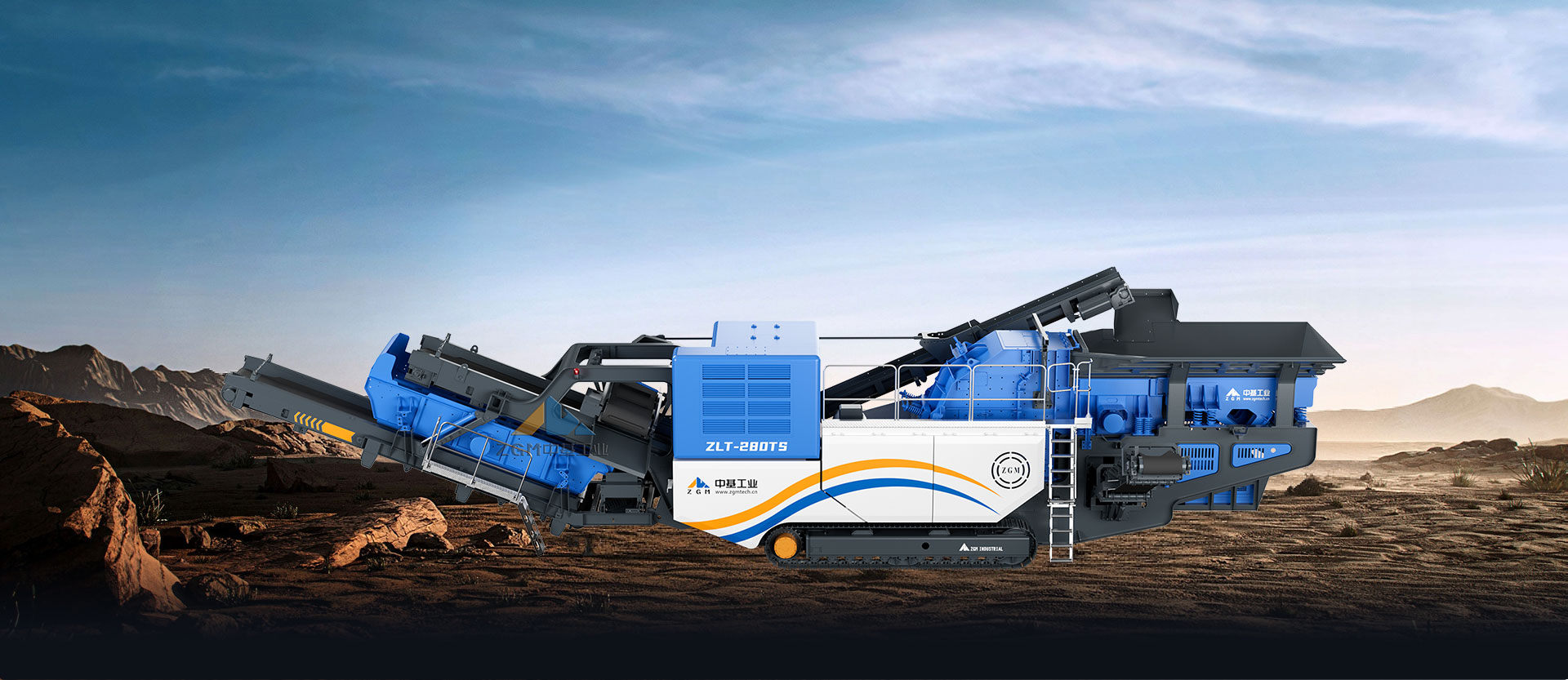

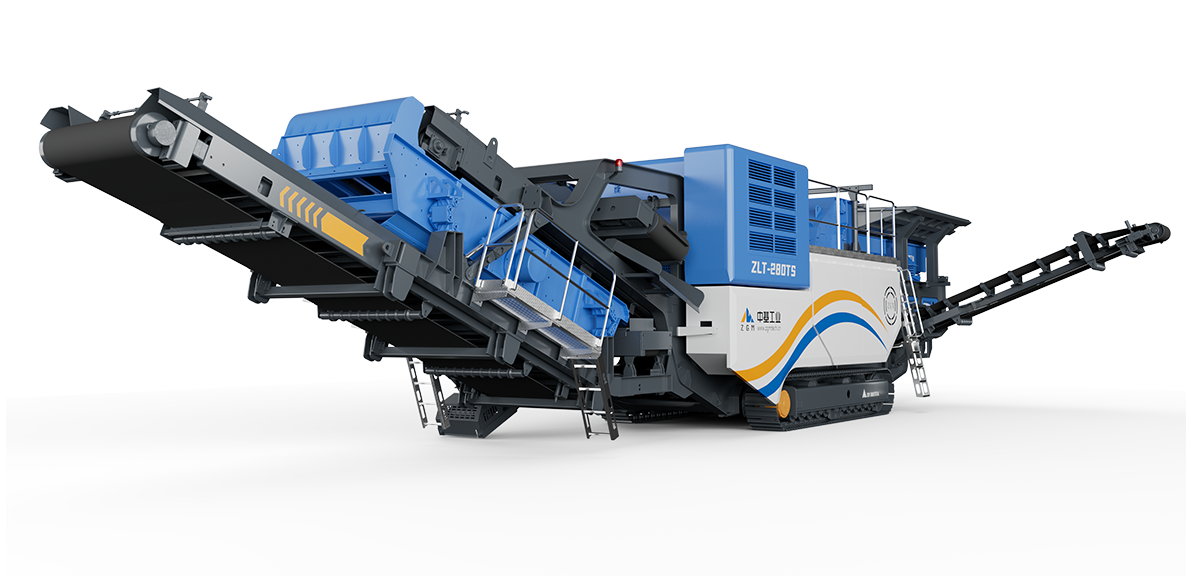

The ZLT Series Crawler Mobile Impact Crusher features a large feed opening, enabling efficient processing of bulky materials with strong crushing capacity and wide adaptability.
| Model | ZLT280 | ZLT280S | ZLT380 | ZLT380S |
| Hopper Volumn(m³) | 6 | 6 | 7 | 7 |
| Feeding Height(mm) | 3900 | 3900 | 4250 | 4250 |
| Max. Feeding Size(mm) | 600 | 600 | 600 | 600 |
| Feeding Capacity(t/h) | 450 | 450 | 450 | 450 |
| Model of Impact Crusher | P6S280 | P6S280 | P6S380 | P6S380 |
| Return Screen Length×Width(mm) | / | 1600×4200 | / | 1600×4200 |
| Layer of Screen | / | 1 | / | 1 |
| Output Size(mm) | 25-100 | 25-100 | 25-100 | 25-100 |
| Chassis Feeder Length×Width(mm) | 1500×2500 | 1500×2500 | 1500×2500 | 1500×2500 |
| Main Belt Width(mm) | 1100 | 1100 | 1200 | 1200 |
| Transfer Belt Width(mm) | / | 500 | / | 500 |
| Return Belt Width(mm) | / | 500 | / | 500 |
| Final Product Belt Width(mm) | / | 1200 | / | 1200 |
| Final Product Belt Stacking Height(mm) | 3400 | 3100 | 3400 | 3100 |
| Whole Machine Power(kw) | 289.7 | 316.6 | 354.7 | 381.6 |
| Main Equipment Power(kw) | 200 | 250 | 280 | 280 |
| Processing Capacity(t/h) | 200-400 | 200-400 | 250-500 | 250-500 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 52 | 60 | 60 | 68 |
| Transportation Dimensions Length × Width × Height(mm) | 16500×3800×3900 | 17500×3800×3900 | 17000×3800×3950 | 18000×3800×3950 |
