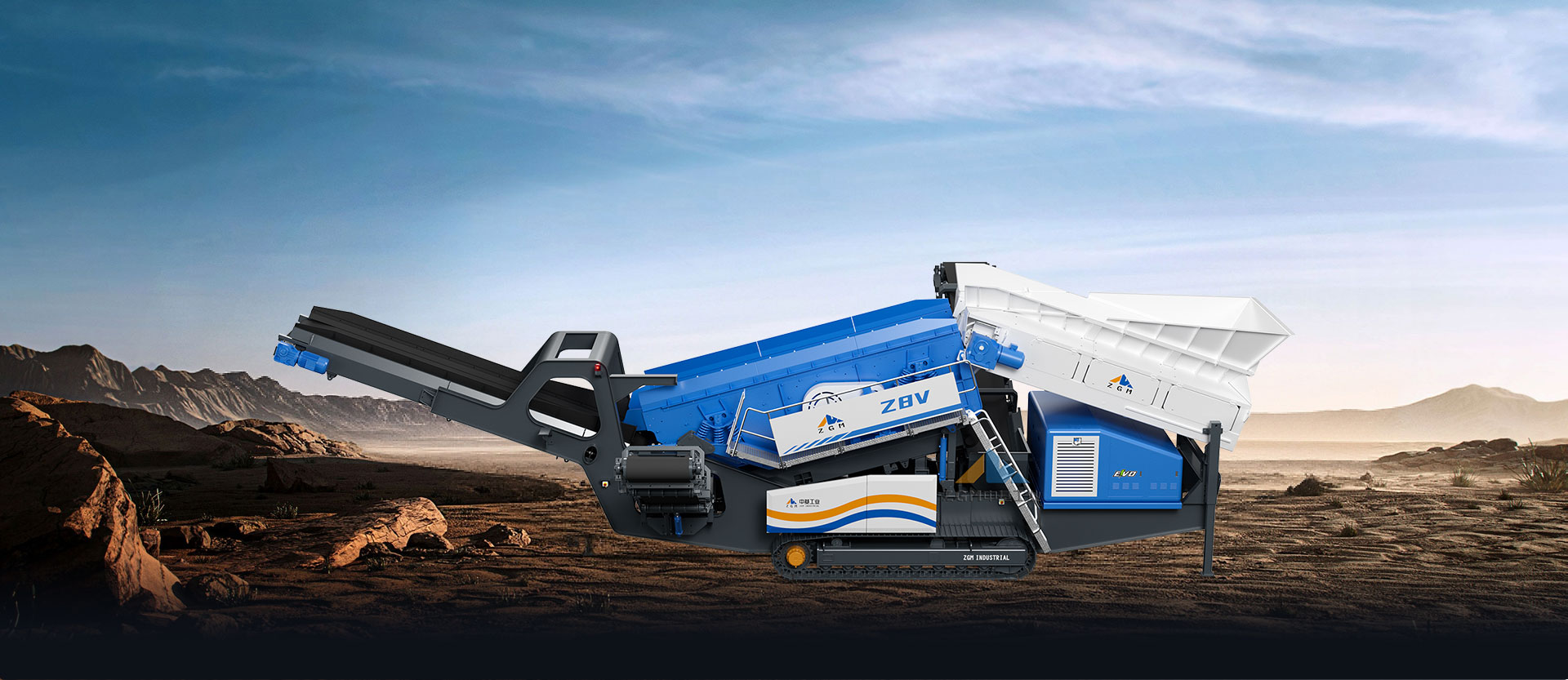

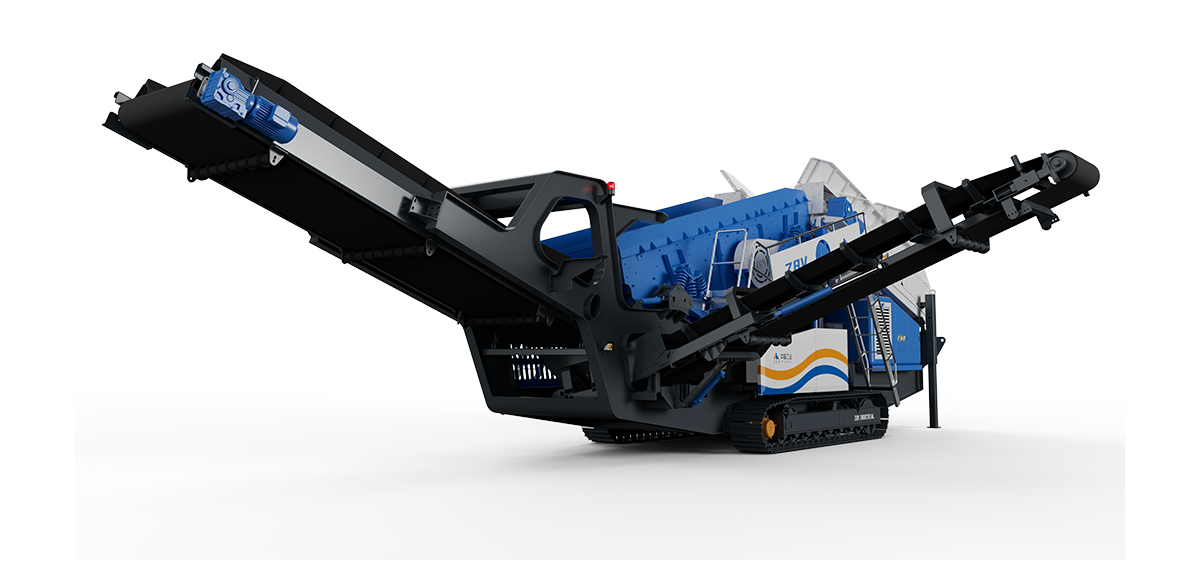

The ZLT Series Tracked Mobile Screening Station (Heavy-Duty Screen) is a high-efficiency device specifically designed for heavy-duty screening operations.
| Model | ZLT1548 | ZLT1848 |
| Hopper Volumn(m³) | 6.5 | 6.5 |
| Feeding Height(mm) | 3600 | 3600 |
| Max. Feeding Size(mm) | 500 | 600 |
| Feeding Capacity(t/h) | 500 | 600 |
| Layer of Screen | 2 | 2 |
| Vibrating Screen Length×Width(mm) | 1500×4800 | 1800×4800 |
| Main Belt Width(mm) | 1000 | 1000 |
| Transfer Belt Width(mm) | / | / |
| Under-Screen Belt Width×Stacking Height(mm) | 1200 | 1200 |
| Coarse Material Belt Width×Stacking Height(mm) | 1200×3600 | 1200×3600 |
| Middle Material Belt Width×Stacking Height(mm) | 800×3500 | 800×3500 |
| Fine Material Belt Width×Stacking Height(mm) | 800×3500 | 800×3500 |
| Whole Machine Power(kw) | 63.5 | 70.5 |
| Processing Capacity(t/h) | 250-500 | 260-680 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 33 | 40 |
| Transportation Dimensions Length × Width × Height（mm） | 14500×3500×3900 | 15000×3800×3900 |
